The JET – Multi Application Non-Submersible Bundle For Rain & Well Water Recycling

Description

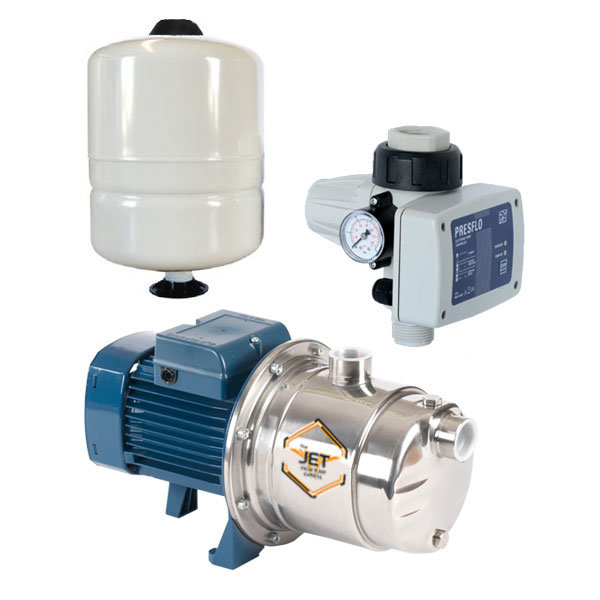

The JET – Multi Application Non-Submersible Bundle For Rain & Well Water Recycling The JET is a versatile bundle for well water recycling applications. The Bundle has numerous uses in domestic and commercial applications where free water is harnessed for irrigation, vehicle washing, toilet flushing and much more With the correct filtration and UV disinfection the water supply could be used as drinking water. KIT CONTAINS – Non-Submersible JET Pump – For Domestic & Civil applications. Used for supplying water from reservoirs, tanks or relatively deep wells – Pressure sensing fixed speed pump controller – Automatically starts and stops the pump. Features Dry Run Protection and Auto Reset – 4ltr Pressure Vessel – Used to store a small amount of water at pressure to stop the pump starting unnecessarily. – Three-Way Brass Connector Fitting – with 1? Gas Connections – Foot Vale & Strainer – 1″ PERFORMANCE RANGE Nominal 2.5 Bar at 30 l/min Suction lift up to 9m ( HS) TECHNICAL DETAILS: Pump 1″ BSP Ports Single-phase 230 V – 50 Hz Power: 0.55kW 3.9A Max. working pressure: 6 bar Controller Max Pump Power: 1.5Kw / 2.0Hp Start Pressure: 1.5 bar Protections: Dry Run / Frequent Starts Voltage: 230V 50Hz Connections: 1? BSP – MALE INLET – FEMALE OUTLET Cut Off Flow Rate: 2 l/min POSSIBLE APPLICATIONS You could use such a system for automatically watering plants, filling troughs, washing cars, washing trailers Filtration The water can be made for human consumption via a suitable filter system. Increasing the usage spectrum of your recycled water and also decreasing your ecological footprint. We sell a large range of filtration systems and UV filter systems. Please click here
