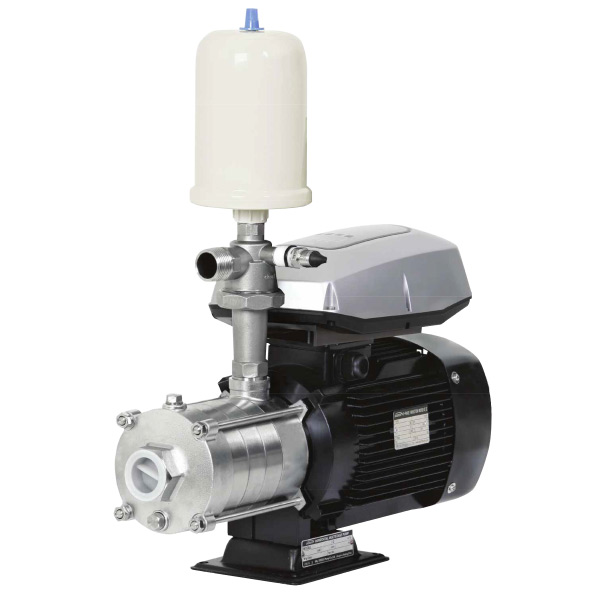

SQ-DHF4-6M Variable Speed Water Booster

Description

SQ-DHF4-6M Variable Speed Water Booster INSTALLATION & USE An intelligent, variable speed pumping system. The SQ drives adjusts the motor speed to provide a constant flow rate and pressure. Can Provide 90 litres per min at 4 bar. Must be used in combination with a break tank or header tank. This will give your pump a reservoir of water to draw from. If you do not have a break or header tank, you may need to consider our Powertank All-In-One water boosting solution that comes complete with a water tank. NOT SUITABLE FOR INSTALLING AFTER THE SHOWER VALVE OR AFTER A COMBI BOILER APPLICATIONS Pressure Boosting Systems Domestic Water Supply Systems Cooling Systems Air-conditioning systems Irrigation systems Industrial Water Supply Systems BENEFITS Maintains constant pressure – regardless of fluctuating demand. Energy saving up to 50% Variable speed drives extend the life of the pump and motor – soft start functions to minimize mechanical stress on pumping system. Simplicity – Eliminate the need for separate control panel, bypass-line and control valves. TECHNICAL INFORMATION Material: Stainless Steel AISI 304 ~ Voltage: 230V 1Ph 50Hz Max. Flow: 130 l/min Max. Head: 60m Motor Size (kW/W) 1.1 Kw Port: 1” FEATURES Constant discharge pressure Dry run protection Flow stop Operation monitoring Fault history Includes 1 litre pressure tank Suitable for showers and other hot water applications (max 65°C). NOT SUITABLE FOR INSTALLING AFTER THE SHOWER VALVE
