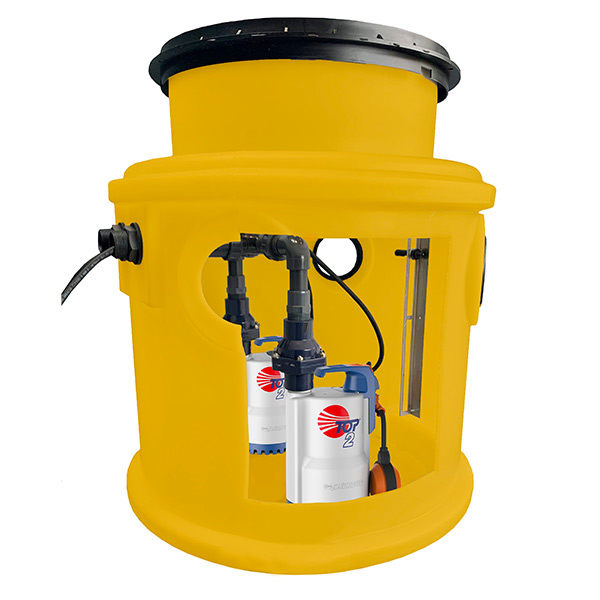

Powerdrain Basement Twin Pump Station

Description

Powerdrain Basement Twin Pump Station INSTALLATION & USE The Twin basement packaged pump stations re designed to collect ground or rainwater and pump to drain when gravity flows are not possible. Applications include drainage of nuisance water or surface water from basements and house extensions. Twin pumps allow for a higher flow rate when removing water providing a more robust system. The Powerdrain range has been designed to ensure an easy and trouble free installation. FEATURES 240 litre Sump Chamber 450mm inspection chamber frame and lid 2 x Pedrollo Top2 automatic pump with fully assembled discharge pipe work. Discharge hole in chamber pre-drilled Inlet holes pre-drilled Full height float switch slide Main powered wireless high level alarm Unique internal water supply for commissioning and servicing CONSTRUCTION Chamber Material: MDPE Chamber Max Volume: 240 Litres Volume Below Inlets: 150 Litres Fixed Inlets : 4 off at 110mm diameter fitted with EDPM tank gaskets Isolation Valve: Single union double seal EDPM ball valve Discharge Connection: 1.5″ BSP Male with optional 40mm adaptor Non-return Valve: Quiet operation EDPM swing check valve Internal Pipework and fittings: All manufactured to EN1452-2/3, ISO161/1, BS21, DIN2999, ISO7 – Note threaded fittings are rated at 12 Bar. Cable Duct Pipework: 40mm Pumps: 2x Pedrollo Top2 Automatic Riser/Lid: 450mm X 150mm fixed riser – most 450mm inspection chamber lids fit Float Switch: Full length aluminium flat switch slide for full chamber depth adjustment Dimensions : h: 800mm ø: 740mm Passage of suspended solids up to Ø 10 mm
