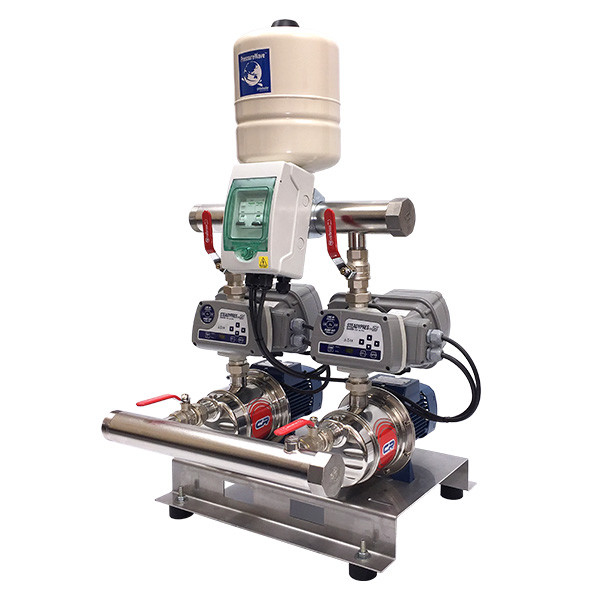

POWERBOOST FLOW V100 – Twin 4 Bar Booster Set 160l/min @3bar

Description

POWERBOOST FLOW V100 – Twin 4 Bar Booster Set 160l/min @3bar INSTALLATION & USE If regular mains supply is insufficient to supply multiple outlets simultaneously a booster set is required. This Twin 4 Bar Cold Water Booster Set is designed to replicate a good mains pressure and supply an abundance of water to suit demand. – It is designed for large domestic and small commercial applications such as guest houses, hotels, sports clubs, or multiple occupation dwellings – It will provide increased flow at sufficient pressure to supply multiple outlets – These water booster sets utilise Pedrollo pumps throughout The units are well suited to very large domestic premises or small commercial properties with lots of outlets (showers, taps etc) and a wide variation in water requirements. The units come pre-assembled on a base-plate with stainless steel inlet/outlet manifolds. The booster sets are pre-wired ready to go and work on either a duty/assist basis (second pump comes on when water demand increases) or a duty/standby (1 pump supplying the full duty with a backup pump of the same capacity). PERFORMANCE RANGE At 3 bar this twin cold water booster set is capable of approximately 160 litres/min OVERVIEW & DESIGN – Energy saving solution – User Friendly – CE Marked – WRAS compliant components – Low maintenance costs – High quality European manufactured pumps – Easy to setup and operate CONSTRUCTION Manifold sizes: 2″ BSP Male Power Supply: 230V/1PH/50Hz Important Note: Connection to inlet manifolds must be of similar or greater size. NB  All pumps must be fed from a suitably sized water tank. CONTROL OPTION Flow-V – Constant Pressure – Steadypres – Constant working pressure – selectable/adjustable – Variable speed drive (VSD) per pump – Drives are water cooled – Advanced power management – Operation log including; alarms & hours run
