Plug & Drain – Emergency KIT for emptying or preventing floods

Description

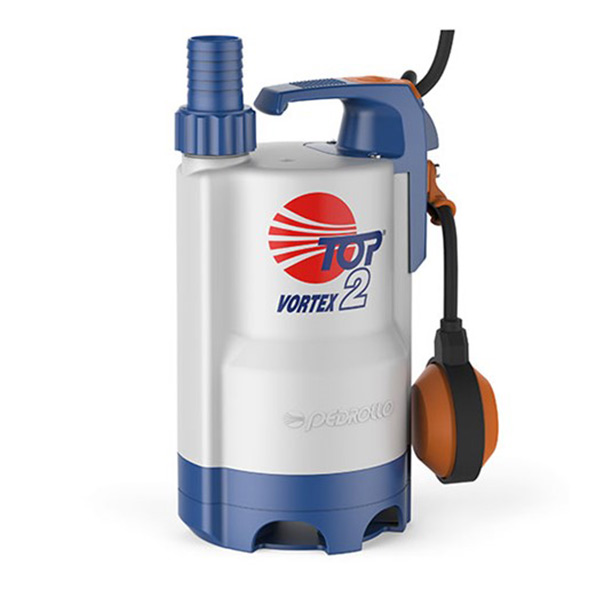

Plug & Drain – Emergency KIT for emptying or preventing floods INSTALLATION & USE The PLUG & DRAIN Emergency Flood Kit is a indispensable and practical solution for tackling flooding in garages, cellars and basements with efficiency and speed. Thanks to the versatile drainage pump and the 15 metres long PVC hose it is possible to swiftly drain the flooded area, if necessary using the plastic crate as a filter. With PLUG & DRAIN you can completely drain the area affected by flooding: the pump can in fact suck up water down to a level of only 2 mm from the bottom. With PLUG & DRAIN you have everything you require ready for use: – Pump with a ready-fitted connector, a 10 metres long power cable with Schuko plug and an external float switch; – PVC hose with a rapid connector; – Crate-filter to prevent possible bulky residues blocking water drainage. Typical Applications In the case of flooded premises place PLUG & DRAIN on the floor, attach the flat hose to the pump by means of the rapid connector, plug into the electricity network and empty the water through the hose. The plastic crate will act as a filter, making it possible to drain down to a level of about 2 cm from the bottom. In order to drain the residual water disconnect the pump from the crate and place it on the floor. The pump will be able to drain down to a level of only 2 mm from the bottom. PLUG & DRAIN Emergency Flood Kit also has the advantage that it can be stored on a shelf so as to have everything necessary in order and ready for use. COMPONENTS Submersible Top2-Floor Pump – Single-phase 230 V – 50 Hz – Thermal overload protector incorporated in the winding – 10 metres of power cable fitted with Schuko plug – External float switch – “CAMLOCK” rapid connection – Emptying level down to 2 mm from the bottom PVC Hose – “CAMLOCK” rapid connection – Length of tube 15 m – Diameter of tube 1¼” Crate-Filter – Complete with a system for fixing the pump for a stable operation and an easy detachment for use of the pump without the crate-filter – Complete with a lid so as to put away PLUG & DRAIN in order and have it always ready for use PERFORMANCE RANGE Flow rate up to  160 l/min (9.6 m³/h) Head up to 9m APPLICATION LIMIT Temperature of the liquid to +40 °C – 3 m maximum immersion depth (with a sufficiently long power cable) – Passage of suspended solids up to Ø 2 mm – Suction down to 2 mm above ground level – Continuous service S1
