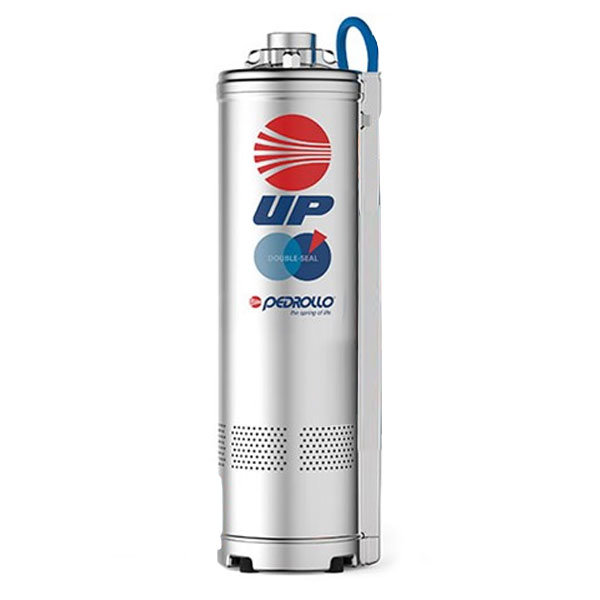

Pedrollo UP Multi-stage Submersible Pump UP2/4-GE (With Float) Single Phase

Description

Pedrollo UP Multi-stage Submersible Pump INSTALLATION & USE The Pedrollo UP are a new concept range of submersible multi-stage pumps designed guarantee even greater reliability, thanks to patented innovative technical solutions which prevent blockage of the pumps even after prolonged periods of inactivity. Because of their high efficiency and reliability they are suitable for use with clean water in domestic, civil and agricultural applications such as the distribution of water in combination with pressure tanks, for the irrigation of gardens and orchards and for pressure boosting, etc. This pump is available in either single or three phase. Single phase pumps are available with or without a fitted float switch. Models include: Single Phase: UPm2/2 | UPm2/3 | UPm2/4 | UPm2/6 | UPm4/3 | UPm4/5 | UPm4/6 Three Phase: UP2/3 | UP2/6 | UP8/4 CONSTRUCTION Stainless Steel AISI 304 External Sleeve , complete with threaded delivery port in compliance with ISO 228/1 Stainless Steel AISI 304 motor sleeve Noryl FE1520PW Impellers and Diffusers Stainless steel motor shaft EN 10088-3 – 1.4104 Stainless steel AISI 304 Diaphragms UPm: single-phase 230 V – 50 Hz with thermal overload protector incorporated into the winding. UP: three-phase 400 V – 50 Hz. Complete with 20 m long power cable PERFORMANCE RANGE Flow rate up to  180l/min (10.8 m³/h) Head up to 95m APPLICATION LIMITS – Maximum liquid temperature 40 °C – Maximum sand content 150 g/m³ – 20 m maximum immersion depth (with a sufficiently long power cable) – Vertical and horizontal installation – Continuous service S1
