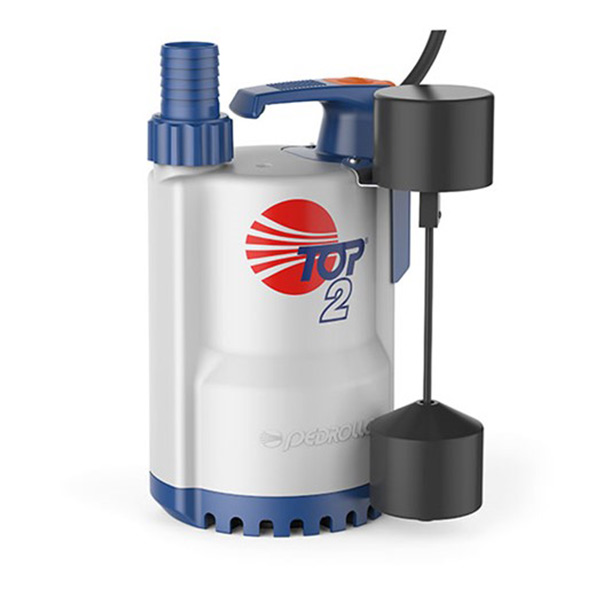

Pedrollo TOP VORTEX GM Submersible Dirty Water Pump TOP 2 – VORTEX GM

Description

Pedrollo TOP VORTEX GM Submersible Dirty Water Pump INSTALLATION & USE The Pedrollo TOP Vorte x GM series is suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made. The GM Model comes complete with a vertical float switch meaning that the pump can be used in particularly small spaces. Innovative design and advanced technology are incorporated into these new Pedrollo TOP pumps, designed to be easy to use and extremely reliable even when subjected to continuous use (subject to correct installation). As a result of the design solutions that have been adopted, such as the complete cooling of the motor, and the shaft with double seal, these pumps are perfect for most drainage applications such as clearing dirty water , for the disposal of waste water , discharging domestic waste water , emptying tanks , and for emptying collection traps containing suspended solids up to a maximum of ø 20mm . CONSTRUCTION Pump Body: Technopolymer Suction Filter: Technopolymer Suction Plate: Technopolymer Diffuser: Technopolymer Impeller: Technopolymer VORTEX type Motor Casing: Stainless Steel AISI 304 Motor Casing Plate: Stainless Steel AISI 304 Motor Shaft: Stainless Steel EN 10088-3 – 1.4104 Power: 230v – Single Phase Outlet: 1’1/4″ BSP Male Supplied with Hose Connector with Union (Hosetail): ø 35mm Cable Length: 10m PERFORMANCE RANGE Flow rate up to  180l/min (10.8 m³/h) Head up to 8m APPLICATION LIMITS Immersion Depth: 3m (with a sufficiently long power cable) Maximum liquid temperature: 40 °C (maximum liquid temperature 90 °C for a maximum of 3 minutes of intermittent service) Passage of suspended solids up to ø 20mm Suction level down to 25mm above ground level Continuous Service S1
