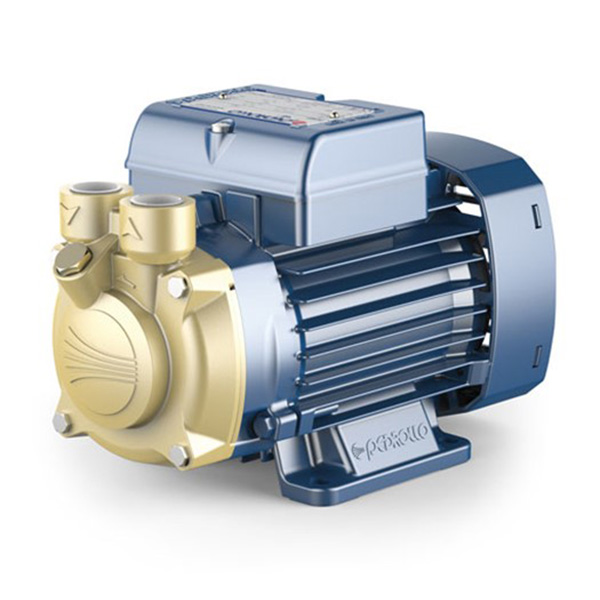

Pedrollo PV Pumps with Peripheral Impeller PV55 Single Phase

Description

Pedrollo PV Pumps with Peripheral Impeller INSTALLATION & USE The Pedrollo PV pump is mainly used in commercial and industrial applications due to its ability to handle smaller pipework and low flow with very minimal power consumption and noisier running. The use of brass in this reliable compact pump reduces the risk of seizure due to rust and oxidation. The PV Pump is designed to suit a wide range of applications, with features including: – High heads achieved from low motor powers – Small variations in delivery rates in the event of changes in the pressure demand – High tolerance to entrained air in the pumped liquid Suitable for use with clean water that does not contain abrasive particles and with liquids that are not chemically aggressive towards the materials from which the pump is made. The design features of these particularly compact brass pumps provide a guarantee against rust and oxidation; they are therefore recommended for industrial applications such as cooling and air conditioning. We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment or sheltered from inclement weather. CONSTRUCTION Pump Body: Brass Pump Body Back-plate: Brass Motor Bracket: Aluminium Impeller: Brass Motor Shaft: Stainless Steel Mechanical Seal: Ceramic / Graphite / EPDM Power Supply:  230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Ports:  PV55 – 1/4″ PERFORMANCE RANGE Flow rate up to 45 l/min (2.7 m³/h) Head up to 105m APPLICATION LIMITS – Manometric suction lift up to 9 m (HS) – Liquid temperature between -10 °C and 90 °C – Ambient temperature between -10 °C 50 °C – Max. working pressure: 10 bar – Continuous service S1
