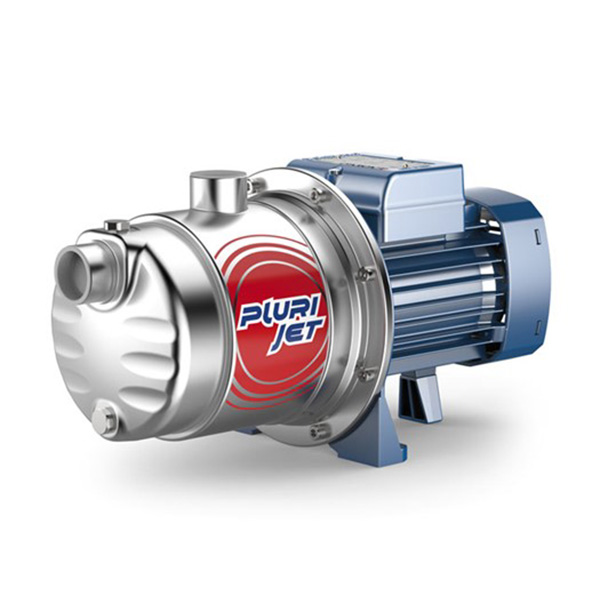

Pedrollo PLURIJET Self-Priming Multi-Stage Pump – Medium Flow PLURIJET4/100-X Single Phase

Description

Pedrollo PLURIJET 60-80-100 Self-Priming Multi-Stage Pump – Medium Flow INSTALLATION & USE The Pedrollo PLURIJET Self-Priming Multi-Stage pumps are suitable for use with clean water even where air is present and with liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their quietness, reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems etc. We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment or sheltered from inclement weather. CONSTRUCTION Model: Pedrollo Plurijet 60-80-100 Pump Body: Stainless Steel AISI 304 , complete with threaded ports in compliance with ISO 228/1 Body Back Plate: Stainless Steel AISI 304 Impellers: Noryl FE1520PW Motor Shaft: Stainless steel EN 10088-3 – 1.4104 Power Supply:  230V Single Phase (230/1/50) or  400V Three Phase (400/3/50) Ports – Inlet: 1″ BSP Female Ports – Outlet: 1″ BSP Female  PERFORMANCE RANGE Flow rate up to  130l/min (7.8 m³/h) Head up to 52m APPLICATION LIMITS – Manometric suction lift up to 9m ( HS) – Liquid temperatures between -10°C and 40°C – Ambient temperature up to 40°C – Max working pressure: 6  bar – Continuous Service S1
