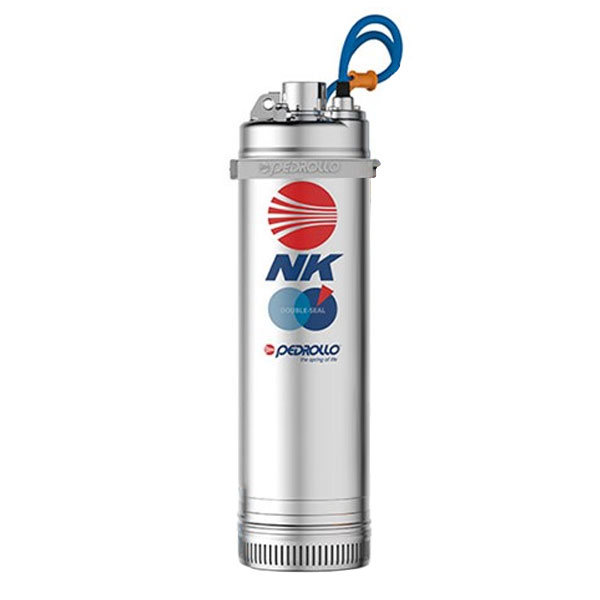

Pedrollo NK Multi-stage Submersible Pump NK2/3-GE (With Float) Single Phase

Description

Pedrollo NK Multi-stage Submersible Pump INSTALLATION & USE The NK Pedrollo pumps are suitable for use with clean water in domestic, civil and agricultural applications such as the distribution of water in combination with pressure sets, for the irrigation of gardens and allotments and for pressure boosting etc. This pump is available in either single or three phase. Single phase pumps are available with or without a fitted float switch. Models include: Single Phase: NKm2/3-N | NKm2/4-N | NKm2/5-N | NKm2/6-N | NKm4/3-N | NKm4/4-N | NKm4/5-N | NKm4/6-N | NK8/4-N CONSTRUCTION Stainless Steel AISI 304 External Sleeve , complete with threaded delivery port in compliance with ISO 228/1 Stainless Steel AISI 304 Suction Filter Stainless Steel AISI 304 motor sleeve Noryl GFN2V Impellers and Diffusers Stainless steel motor shaft EN 10088-3 – 1.4104 Complete with 20 m long power cable Power Supply:  230V Single Phase (230/1/50) or  400V Three Phase (400/3/50) Ports: 1 1/4? PERFORMANCE RANGE Flow rate up to  160l/min (9.6 m³/h) Head up to 95m APPLICATION LIMITS – Maximum liquid temperatur e 40°C – Maximum sand content 50 g/m³ (with a sufficiently long power cable) – 20m maximum immersion depth – Continuous service S1
