Pedrollo JCR2 Stainless Steel Self-Priming JET Pumps JCR2C Single Phase

Description

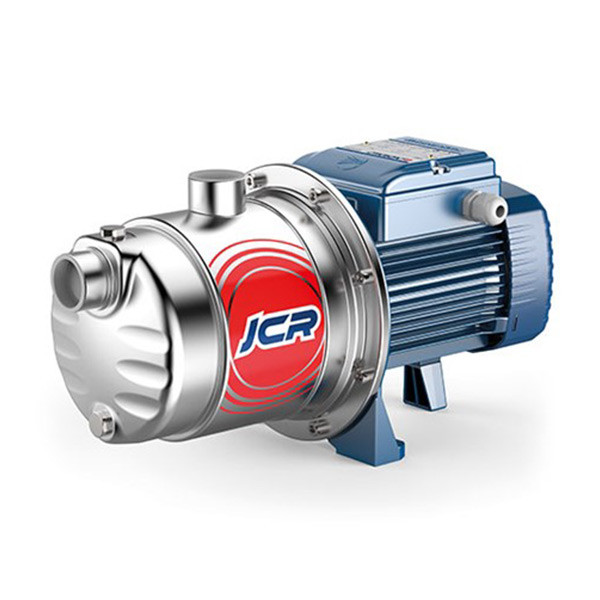

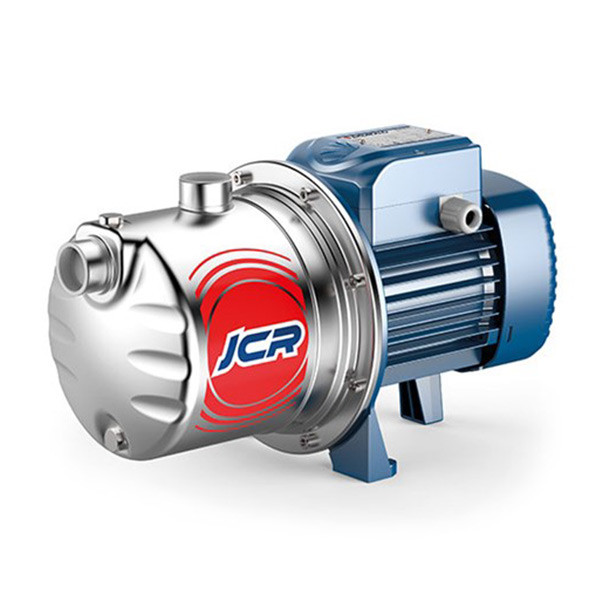

Pedrollo JCR2 Stainless Steel Self-Priming “JET” Pumps INSTALLATION & USE The Pedrollo JCR Stainless Steel Self Priming pumps are designed to pump water even in cases where air is present. Because of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure tanks, and for the irrigation of gardens and orchards, etc. Common applications include; Irrigating a garden or pressurising a house from a shallow well Irrigating a garden or pressurising a house from a stream Irrigating a garden or pressurising a house from an underground rainwater harvesting tank We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment or sheltered from inclement weather. Models Include: Single Phase: JCRm2A | JCRm2B | JCRm2C Three Phase: JCR2A | JCR2B | JCR2C CONSTRUCTION Pump Body: Stainless Steel AISI 304 , complete with threaded ports in compliance with ISO 228/1 Body Back Plate: Stainless Steel AISI 304 Nozzle Assembly: Noryl FE1520PW Impeller: Stainless Steel AISI 304 Motor Shaft: Stainless Steel EN 10088-3 – 1.4104 Power Supply:  230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Ports – Inlet & Outlet: 1″ PERFORMANCE RANGE Flow rate up to  70l/min (4.2 m³/h) Head up to 60m APPLICATION LIMITS – Manometric suction lift up to 9m ( HS) – Liquid temperatures between -10°C and 40°C – Ambient temperature up to 40°C – Max working pressure: 6  bar
