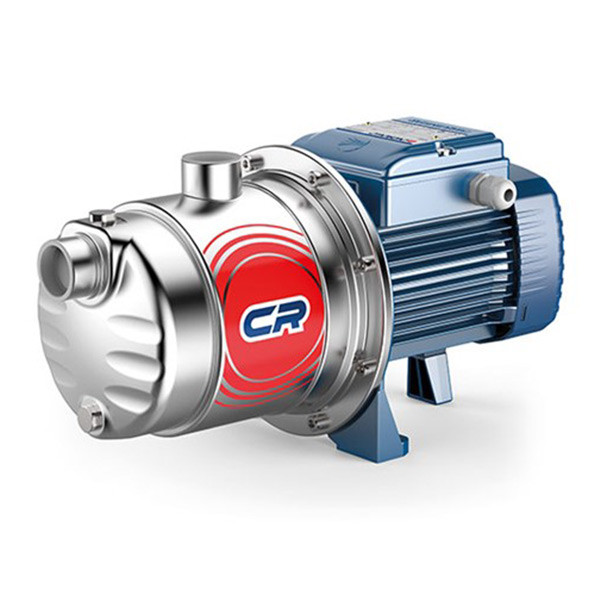

Pedrollo CR Stainless Steel Multi-Stage Centrifugal Pumps 5CR80 Three Phase

Description

Pedrollo CR Stainless Steel Multi-Stage Centrifugal Pumps INSTALLATION & USE The Pedrollo CR Stainless Steel Multi-Stage Centrifugal Pumps are suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their quietness these pumps are widely used in domestic applications such as the distribution of water and water pressure boosting in combination with small and medium sized pressure tanks, and for the irrigation of gardens and orchards, etc, Can also used in pairs to pressure boost the water supply in gravity fed systems. We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment or sheltered from inclement weather. Models include: Single Phase: 2CRm80 | 3CRm60 | 3CRm80 | 4CRm80 | 3CRm100 | 4CRm100 | 5CRm80 | 5CRm100 Three Phase: 2CR80 | 3CR60 | 3CR80 | 4CR80 | 3CR100 | 4CR100 | 5CR80 | 5CR100 CONSTRUCTION Pump Body: Stainless Steel AISI 304 , complete with threaded ports in compliance with ISO 228/1 Body Back Plate: Stainless Steel AISI 304 Impellers: Noryl FE1520PW Motor Shaft: Stainless Steel EN 10088-3 – 1.4104 Power Supply:  230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Ports – Inlet & Outlet: 1″ BSP Female PERFORMANCE RANGE Flow rate up to  130l/min (7.8 m³/h) Head up to 67m APPLICATION LIMITS – Manometric suction lift up to 7m – Liquid temperatures between -10°C and 90°C – Ambient temperature up to 40°C – Max working pressure 7 bar
