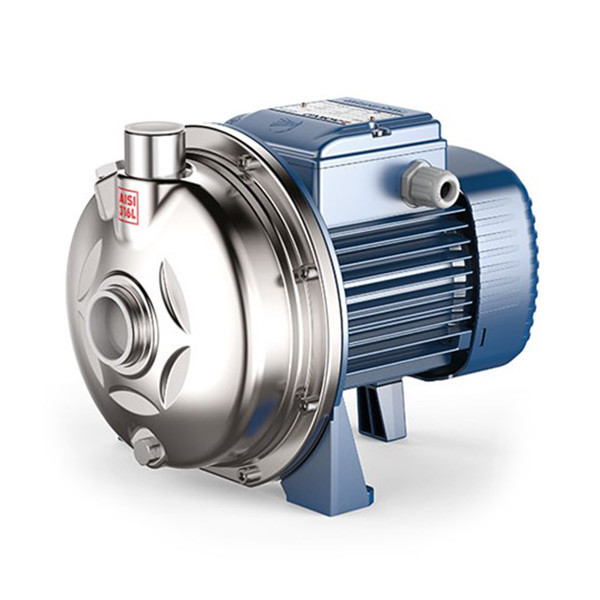

Pedrollo CP-ST Stainless steel centrifugal pumps CP130 -ST4 Three Phase

Description

Pedrollo CP-ST Stainless steel centrifugal pumps INSTALLATION & USE Pedrollo CP-ST are suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made. Because of its design features these centrifugal pumps are recommended for use in domestic, agricultural and industrial applications. All the components in contact with the pumped liquid are in stainless steel AISI 304 or AISI 316L thus guaranteeing complete hygiene and maximum resistance against corrosion. Typical Applications – Irrigation pumps – Cooling systems – Air conditioning systems – Washing systems – Water supply systems – Water treatment plants We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment or sheltered from inclement weather. Pump Performance equivalents; CPm100 ST4 (Single Phase) – Similar Performance to Lowara CEA70/3 CPm130 ST4 (Single Phase) – Similar Performance to Ebara CDX 70/05 & Lowara CEA70/3 CP 130 ST4 (Three Phase) – Similar Performance to Ebara CDX 70/05 & Lowara CEA70/3 CPm 158 ST4 (Single Phase) – Similar Performance to Lowara CEA80/5 CPm 170 ST4 (Single Phase) – Similar Performance to Lowara CEAm120/5 & Ebara CDX 120/20 CONSTRUCTION Pump Body: Stainless steel AISI 304 (ST4) Stainless steel AISI 316L (ST6) Motor Shaft: Stainless steel AISI 431 (ST4) Stainless steel AISI 316L (ST6) Impeller: Stainless steel AISI 304 (ST4) Stainless steel AISI 316L (ST6) Power Supply: 230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Ports: 1 1/4″ & 1″ PERFORMANCE RANGE Flow rate up to 160 l/min (9.6 m³/h) Head up to 41 m APPLICATION LIMITS – Temperature of the liquid from – 10 °C to +90 °C – Ambient Temperature to +40 °C – Manometric suction lift up to 7 m – Max. working pressure: – 6 bar for CP 100-130-132-150-158 ST4 CP 100-130-132-150-158 ST6 – 8 bar for CP 170-170M ST4 CP 170-170M ST6 – Continuous service S1
