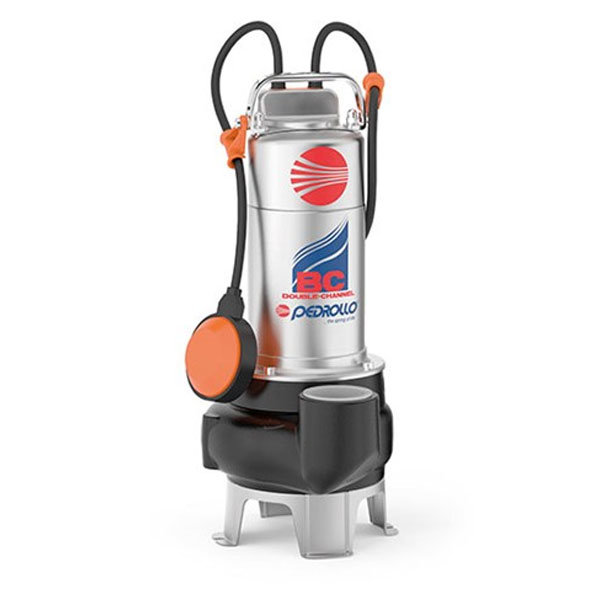

Pedrollo BC “DOUBLE-CHANNEL” Submersible Sewage Pumps BC 15/50 (Automatic – With Float) Single Phase

Description

Pedrollo BC “DOUBLE-CHANNEL” Submersible Sewage Pumps INSTALLATION & USE Pedrollo BC submersible sewage pumps are suitable for draining dirty water and sewage in domestic, civil & industrial applications. They come equipped with a DOUBLE-CHANNEL stainless steel impeller and are capable of pumping liquids containing short fibred suspended solids up to Ø 50 mm. They are ideal for pumping sewage water, waste water, surface water and water mixed with mud in locations such blocks of flats and detached homes. These pumps are extremely reliable and a best suited for running under automatic operating conditions in fixed installations. CONSTRUCTION Pump Body:  Cast iron with an Epoxy Electro Coating treatment, with threaded port in compliance with ISO 228/1 Impeller: Precision cast stainless steel AISI 304 DOUBLE-CHANNEL type Motor Casing: Stainless steel AISI 304 Casing Plate: Stainless steel AISI 304 Motor Shaft: Stainless steel AISI 431 Port – 2″ BSP Power Supply:  230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Power cable length: – 5m for BC10/50 – 10m for BC15/50 PERFORMANCE RANGE Flow rate up to  750 l/min (45 m³/h) Head up to 15m APPLICATION LIMITS – 5 m maximum immersion depth (with a sufficiently long power cable) – Maximum liquid temperature +40 °C – Passage of suspended solids up to Ø 50 mm – Minimum immersion depth for continuous service: 300 mm Single Phase versions come complete with External Float Switch
