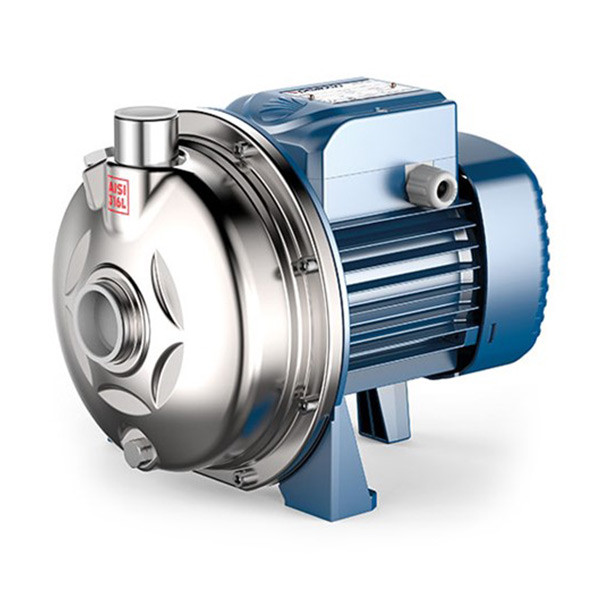

Pedrollo AL-RED Stainless Steel Centrifugal Pump Three Phase

Description

Pedrollo AL-RED Stainless Steel Centrifugal Pump INSTALLATION & USE The Pedrollo AL-RED Stainless Steel Centrifugal Pump pumps are suitable for domestic, agricultural and industrial sectors. All of the components in contact with the pumped liquid are constructed from stainless steel AISI 304, thus guaranteeing complete hygiene and maximum resistance against corrosion. We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather. The pump cannot be allowed to get wet or to freeze. CONSTRUCTION Pump Body: Cast iron, complete with threaded ports in compliance with ISO 228/1 Cast iron body backplate Impeller: Brass  Motor Shaft: Stainless steel centrifugal pump EN 10088-3 – 1.4104 Power Supply:  230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Ports: 1’1/4″ Female Inlet, 1″ Male Outlet (BSP Thread) Model: AL-RED 135 PERFORMANCE RANGE Flow rate up to 160 l/min (9.6 m³/h) Head up to 21m APPLICATION LIMITS – Manometric Suction Lift up to 7m – Liquid Temperature Between – 10°C and 90°C – Ambient Temperature between – 10°C – 40°C – Max. Working Pressure: 4 bar OTHER PRODUCTS YOU MAY NEED If you require this pump to automatically switch on and off, you will need a pump controller. We strongly advise you contact us to ensure we can recommend the right equipment for your job.
