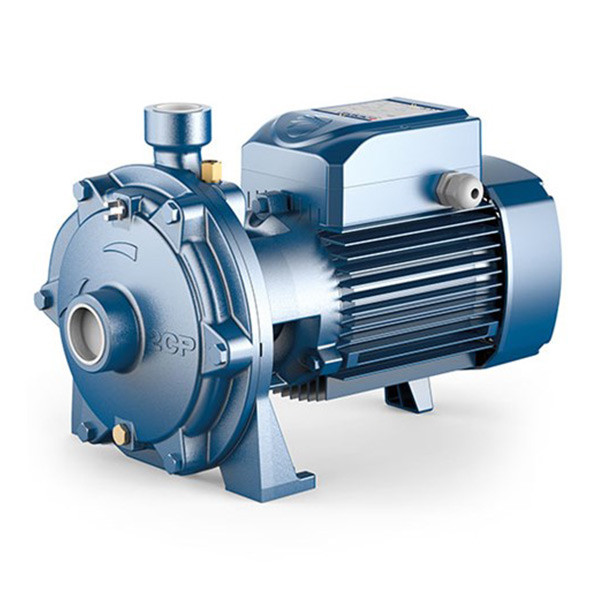

Pedrollo 2CP Twin-Impeller Centrifugal Pumps 2CP40/180B Max Head: 76m Max Flow: 400 lpm Three Phase

Description

Pedrollo 2CP  Twin-Impeller Centrifugal Pumps INSTALLATION & USE The Pedrollo 2CP Multi-stage Centrifugal Pumps are suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets. We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment or sheltered from inclement weather. CONSTRUCTION Pump Body: Cast Iron , complete with threaded ports in compliance with ISO 228/1 Body Back Plate: Stainless Steel AISI 304 Impeller: Stainless Steel AISI 304 Motor Shaft: Stainless steel EN 10088-3 – 1.4104 Power Supply:  230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Ports: 1 1/4 ” & 1″ – 25/14B, 25/14A, 25/16C, 25/16B, 25/16A 1 1/2 ” & 1 1/4 ” – 32/200C &  32/200B 2″ & 1 1/4″ – 32/210B & 32/210A 2″ & 1 1/2″ – 32/210B, 32/210A, 40/180C, 40/180B, 40/180A, 40/200B & 40/200A PERFORMANCE RANGE Flow rate up to 450 l/min (27 m³/h) Head up to 112m APPLICATION LIMITS – Manometric suction lift up to 7m – Liquid temperatures between -10°C and 90°C – Ambient temperature between -10°C and 40°C – Max working pressure 10 bar ( 6 bar for 2CP25/130N)
