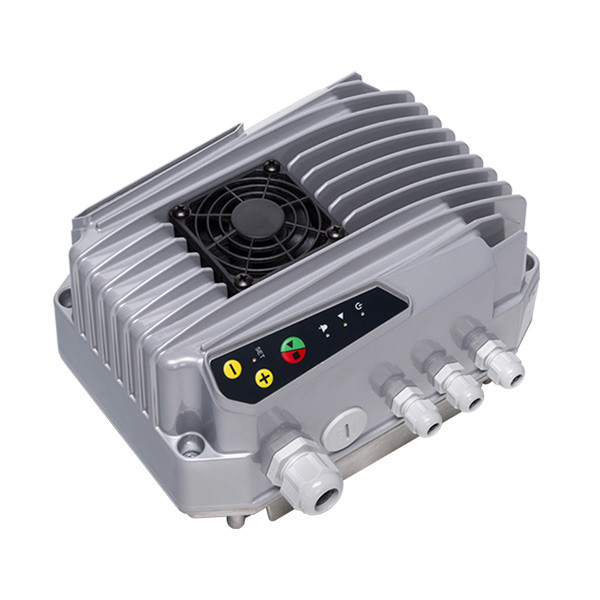

Nastec MIDA Inverter MIDA 207 – 1 x 230

Description

Nastec MIDA Inverter INSTALLATION & USE Next generation of motor on-board inverter The Nastec MIDA is an electronic inverter device used for controlling Booster Pump Sets, Submersible Pumps and HVAC Systems with Circulating Pumps. Key Features: –  Energy saving due to variable speed control. –  Soft start and soft stop. –  Extended system life and reliability. –  Installation on humid and dusty environments made possible by IP55 (NEMA 4) protection degree. –  Simplified installation on motor or wall. –  Easy and fast commissioning thanks to initial configuration wizard. –  High thermal and mechanical performance thanks to aluminium case and independent ventilation. MIDA can be installed directly on motor terminal box of horizontal or vertical axis pumps Several Control Modes: –  Constant pressure control. –  Constant or proportional differential pressure control. –  Constant temperature control. –  Constant differential temperature control. –  Constant flow control. –  External frequency control (trimmer) or 1 or 2 preset frequencies control. Built-in Protections Against: –  Overvoltage and undervoltage. –  Overcurrent and no load. –  Dry running. –  Overtemperature. TECHNICAL DETAILS: Rated frequency: 50 – 60 Hz (+/- 2%) Ambient temperature: – 10 – 40°C (14 – 104 °F) Max. altitude at rated current: 1000 m Protection degree: IP66 Settable digital outputs N.O. or N.C.: 1. Motor run signal 2. Alarm signal Analog inputs (10 or 15 VDC): 1. 4-20 mA 2. 4-20 mA 3. 0 – 10 VDC 4. 0 – 10 VDC 4 digital inputs, configurable N.O. or N.C. for motor run/stop RS485 MODBUS RTU, Bluetooth® SMART* (4.0) Model Vin ± 15% VAC Max V out VAC Max I in A Max I out A P2 motor power * kW MIDA 207 1 x 230 3 x Vin 11 7.5 1.5
