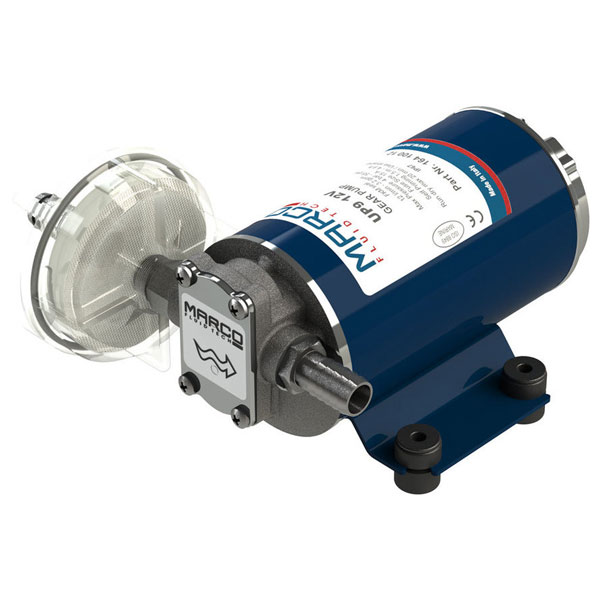

Marco UP9 12V/24V Heavy Duty Gear Pump UP9 12v

Description

Marco UP9 12V/24V Heavy Duty Gear Pump INSTALLATION & USE Self-priming electric pumps with bronze gears for the transferring of liquids. Pump body in nickel-plated brass and stainless steel shaft. Main applications: transfer of diesel fuel, antifreeze. For intermittent use only. There are numerous fields of application for this pump, however only exclusively with the allowed liquids mentioned: – transfer of diesel between tanks, refuelling of tractors and earth moving equipment – transfer of lightweight lube oils, antifreeze etc. CONSTRUCTION Code: 16410012 (12V) or 16410013 (24V) Volt: 12 or 24V Consumption: 5A (12V model) 3A (24V model) Weight: 2.7kg Dimensions 189x166x106 mm Outlet 13mm Max self priming to 1 meter Ports: 3/8″ Self Priming: 1.5m PERFORMANCE RANGE Max Flow Rate: 12 l/min Max Pressure: 4 Bar (58psi) APPLICATION LIMITS Temperature: Min -10°C / max 60°C Relative Humidity: max. 90°C Fluids Allowed / Not Allowed: Allowed: Fresh Water (max. 85°C-185°F) Allowed: Diesel Fuel minimum flashpoint (PM): 55°C-131°F NOT Allowed: Petrol (Gasoline) NOT Allowed: Flammable Liquids with PM 20 cSt NOT Allowed: Foodstuff Liquids NOT Allowed: Corrosive Chemical Products NOT Allowed: Solvents
