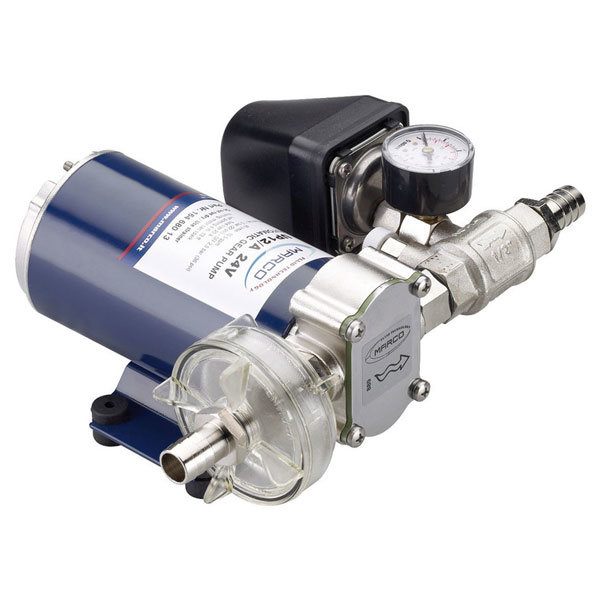

Marco UP2/A Automatic Water Pressure System

Description

Marco UP2/A Automatic Water Pressure System INSTALLATION & USE Self-priming electric pumps with PTFE helical gears, equipped with in-line filter, pressure switch, check valve to be used to automate pumps for water pressure systems on boats, mobile homes etc. Nickelplated brass body, stainless steel shaft. There are numerous fields of applications for the pump, however only exclusively with the allowed liquids mentioned: – main use as automatic pump for water pressure systems on boats, mobile homes, etc. CONSTRUCTION Code: 16466212 Type: UP2/A Volt: 12V Fuse: 7.5A Consumption: 3A Motor Power: 90W Self Priming up to: 1.5m Weight: 2kg Dimensions 163 x 116  x 110mm Ports: 3/8″ BSP PERFORMANCE RANGE Max Flow Rate:  10 l/min Max Pressure:  1.5 Bar APPLICATION LIMITS Fluids Allowed / Not Allowed: Allowed: Fresh Water (max. 40°C) NOT Allowed: Petrol (Gasoline) NOT Allowed: Flammable Liquids with PM 20 cSt NOT Allowed: Corrosive Chemical Products NOT Allowed: Solvents Temperature: Min -10°C / max 60°C Relative Humidity: max. 90%
