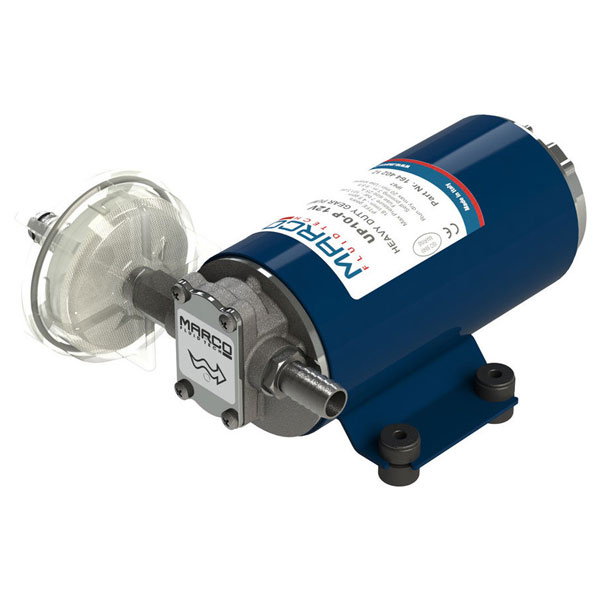

Marco UP10-P 12V/24V Heavy Duty Gear Pumps UP10-P 12V

Description

Marco UP10-P 12V/24V Heavy Duty Gear Pumps INSTALLATION & USE Self-priming electric heavy duty gear pump for the transfer of liquids of varied nature up to 7 bar pressure. The pumping elements are made up of PTFE gears which can possibly even run dry for brief periods. Completely equipped with in-line filter on the inlet side. There are numerous fields of applications for the pump, however only exclusively with the allowed liquids mentioned: – transfer of diesel fuel between tanks, refuelling of tractors and earth moving equipment – transfer of water – transfer of light weight lube oils, antifreeze, etc. Main application: high pressure spraying. CONSTRUCTION Code: 16440212 (12V) or 16440213 (24V) Type: UP10-P Volt: 12V or 24V Fuse: 25A or 20A Consumption: 11A (12V model) 5A (24V model) Self Priming up to: 3m Weight: 3.8kg Ports: 3/8″ BSP Hose (mm): 13 PERFORMANCE RANGE Max Flow Rate: 18 l/min Max Pressure: 7 Bar APPLICATION LIMITS Fluids Allowed / Not Allowed: Allowed: Fresh Water (max. 85°C-185°F) Allowed: Diesel Fuel minimum flashpoint (PM): 55°C-131°F NOT Allowed: Petrol (Gasoline) NOT Allowed: Flammable Liquids with PM 20 cSt NOT Allowed: Foodstuff Liquids NOT Allowed: Corrosive Chemical Products NOT Allowed: Solvents Temperature: Min -10°C / max 60°C Relative Humidity: max. 90°C
