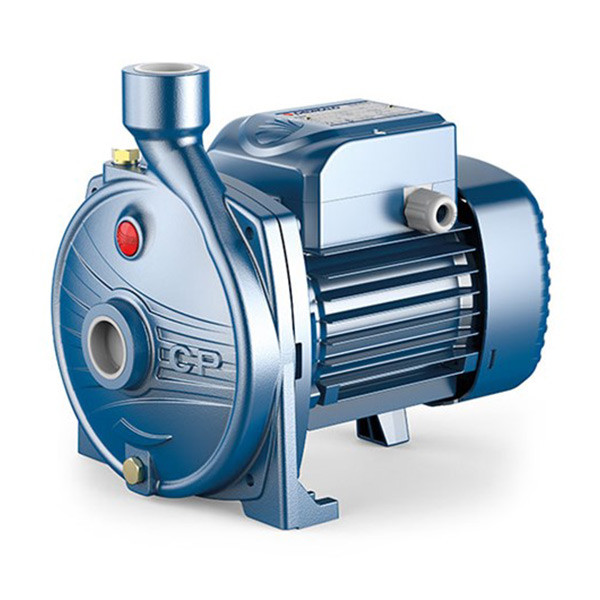

CP230 Centrifugal Pumps – High Flow CP230C Three Phase

Description

CP230 Centrifugal Pumps – High Flow INSTALLATION & USE Pedrollo CP High Performance Centrifugal Pumps are suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made. As a result of their reliability, and the fact that they are easy to use, these centrifugal pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in conditioning and cooling systems, for irrigation, etc. We always recommend getting pumps installed by a qualified plumber. The pump should be installed in an enclosed environment or sheltered from inclement weather. CONSTRUCTION Cast iron pump body , complete with threaded ports in compliance with ISO 228/1 Cast Iron body backplate Brass impeller Stainless steel motor shaft EN 10088-3 – 1.4104 Power Supply:  230V Single Phase (230/1/50) or 400V Three Phase (400/3/50) Ports: 2″ PERFORMANCE RANGE Flow rate up to 900 l/min (54 m³/h) Head up to 46m APPLICATION LIMITS – Manometric suction lift up to 7m – Liquid temperature between -10°C and 90°C – Ambient temperature between -10°C and 40°C – Max. working pressure 10 bar – Continuous service S1
